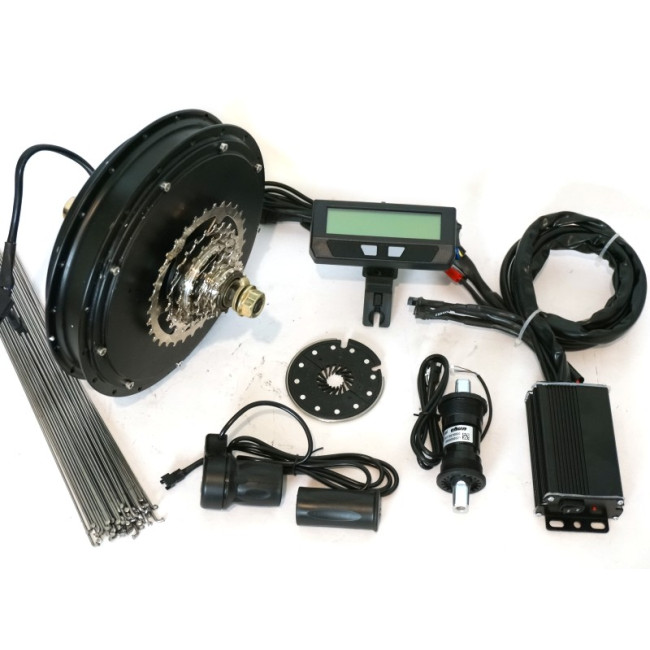

main product photo
Loading...

9C+ Rear Kit, Advanced PAS

Rear 9C+ Based Kit with a V3 Cycle Analyst and PAS/Torque Sensor Options.

Out of stock

SKU
K-9CR_Adv
Customize 9C+ Rear Kit, Advanced PAS

* Required Fields

Your Customization
Rear 9C+ Advanced Kit with V3 CA and PAS/Torque Sensor Options
Summary
    Rear 9C+ 27XX series motor kit. Includes powerful direct drive front hub motor with 0.35mm laminations for reduced rolling drag, Statorade for heat dissipation, a 20-35A regen capable Grinfineon controller, wiring accessories, a V3 Cycle Analyst, and your choice of PAS or torque sensor for pedalec modes. This value kit with great all around performance.

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

    Specifications
    FW7Spd1132
    Actual Weight (kg)
    0.5
    Cluster Type
    Threaded Freewheel
    8 Speed Freewheel, 11-32 Tooth
    Actual Weight (kg)
    0.62
    Cluster Type
    Threaded Freewheel
    9 Speed Freewheel, 11-32 Tooth
    Actual Weight (kg)
    0.56
    Cluster Type
    Threaded Freewheel
    Rim20_Alex
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    32
    Spoke Holes
    36 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    390
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim24J31
    Actual Weight (kg)
    0.7000
    Rim Width (mm)
    31
    Spoke Holes
    36 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    477
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim26_Fat
    Actual Weight (kg)
    1.06
    Rim Width (mm)
    65
    Spoke Holes
    36 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    537
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim700_Alex
    Actual Weight (kg)
    0.80
    Rim Width (mm)
    32
    Spoke Holes
    36 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    606
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Phaserunner_MT
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Regen Voltage (V)
    90
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    Phaserunner_MT_Bk
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    24 Pole PAS (Short 90cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    More Information
    Product Attachments
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner User Manual V2 (1.45 MB)
    Phaserunner V3 Updates (538.75 kB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner User Manual V2 (1.45 MB)
    Phaserunner V3 Updates (538.75 kB)
    Digital Auxiliary Input Specifications (430.37 kB)
    Auxiliary Potentiometer Specifications (426.08 kB)
    3 Position Switch Specifications (419.54 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    TripWire Pull Specifications (426.56 kB)
    TripWire Push Short Specifications (425.65 kB)
    Statorade Specifications (44.44 kB)
