DC-12V20W

Grin Tech 12V 20 Watt Output Rugged DC-DC Converter, for 24V- 48V Batteries.

Full Product Information Page

SKU
DC-DC-12V20W
12V 20 watt output DC-DC converter, for 24V, 36V, and 48V battery packs. Made in Vancouver

Rugged and compact and completely potted in epoxy leaving no concern of water, dust or snow damage or of exposed metal pins shorting out against the bike frame.

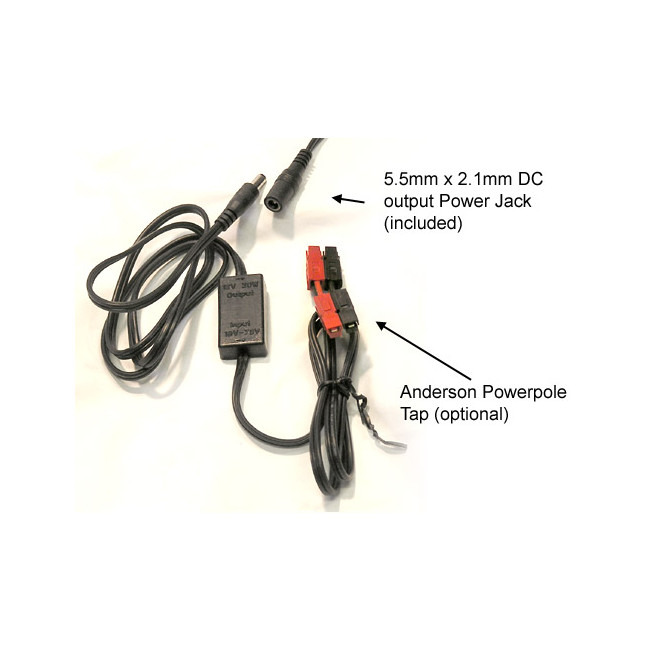

Comes in slim 42x23x12mm package with about 60cm of 18 AWG cable on the input side, 90cm at the output plus another 30cm attached to the included mating plug.

Uses 5.5 x 2.1mm DC plug on output.

When drawing close to the maximum load, the DC-DC converters will get quite hot so it is best to keep them exposed to air flow under high load situations rather than tucked into a padded bag. They have an internal temperature shutdown to protect the internal circuit but by that point the block of cheese sitting next to them stuffed inside your pannier could be a little melted.

For more information please see the DC-DC converter page

More Information
Country of Manufacture Canada
Actual Weight (kg) 0.0830
Turn-On Voltage (reduced power) 14
Minimum Input Voltage (V) 17
Max Input Voltage (V) 70
Connector / Jack Unterminated
Output Voltage 12V
Output Current (A) 2
