eZee26R_Fst

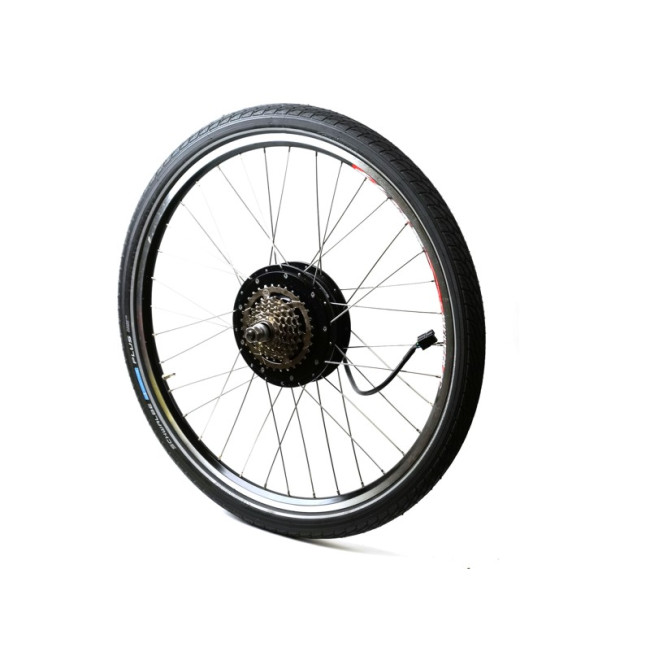

eZee V2 (350RPM) Rear Hub Motor in 26" Rim with Tube and 1.75" Tire
SKU
M-eZee26R_Fst
V2 eZee Fast Wind Rear Motor in 26" Rim, with Marathon Plus 1.75" Tire
More Information
Country of Manufacture China
Actual Weight (kg) 6.9000
Motor Nominal Wheel Size 26" (ISO 559)
Motor Power Range (Watts) 500-1000
Motor KV (RPM / V) 11.1
Phase Resistance (Ohm) 0.038
Disk Brake Compatible Yes
Connector(s) Anderson, JST-SM
Axle Length (O.L.D.) 135
Axle Threads M14 x 1.5mm
Rim Brake Compatible Yes
Rim Width (mm) 23
Spoke Holes 36 Hole
Motor Type Geared
Flange Spoke Diameter (mm) 173
Magnetic Pole Pairs (Phaserunner) 80
Speedo Poles (for CA) 1
Hysteresis Losses (N-m) 0.58
Eddie Losses (N-m / rad/sec) 0.039
Motor Inductance (H) 0.00007
