MG311 Standard Wind 700c

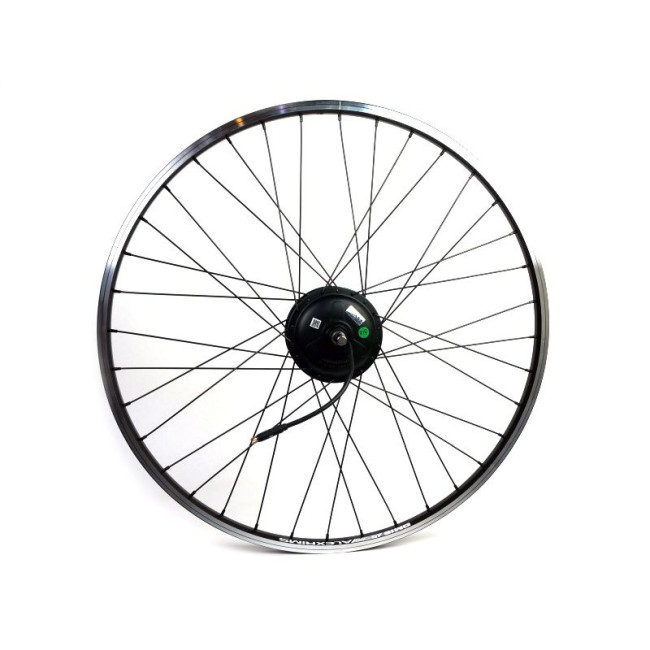

Bafang G311 Front Geared Hub Motor in 700c Alex DM18 Rim Standard Wind (8.4 rpm/V).

SKU
M-MG311_Std_700

The Bafang G311 front motor is a compact disk compatible 2.5kg rear hub with a nominal 250-350 watt power rating that works great for stealthy systems that do not require significant assist for steep hills or cargo. This motor is laced in a 700c Alex DM18 rim and includes an internal 6-pole speedeometer sensor so it can use a CA-DP device and not require an external speedo pickup. It has a helical gears on the initial reduction of a double stage planetary gear and is exceptionally quiet for a geared motor. This hub is wound with a moderate speed winding (8.4 rpm/V)

Uses 9-pin overmolded Higo Z910 waterproof connector for the motor phase, hall, and speedo wires. Has internal tabbed washers for anti-torque rotation with the dropouts and a round 10mm axle. Does not work with conventional torque arms.

For more details, see the G31X Geared Motor Info Page

More Information
Country of Manufacture China
Actual Weight (kg) 3.16
Motor Nominal Wheel Size 700C (ISO 622)
Motor Power Range (Watts) 250-500
Motor KV (RPM / V) 8.4
Phase Resistance (Ohm) 0.124
Disk Brake Compatible Yes
Connector(s) Z910
Axle Length (O.L.D.) 100
Axle Threads M12 x 1.25mm
Rim Brake Compatible yes
Spoke Holes 36 Hole
Motor Type Geared
Flange Spoke Diameter (mm) 123
Magnetic Pole Pairs (Phaserunner) 88
Speedo Poles (for CA) 6
Hysteresis Losses (N-m) 0.666
Eddie Losses (N-m / rad/sec) 0.015
Motor Inductance (H) 0.00021
