MXUS Rear Cassette Kit, Advanced PAS

Advanced Rear MXUS Cassette Direct Drive Motor Kit with V3 Cycle Analyst and PAS/Torque Sensor Options.

Out of stock

SKU
K-MX_RC_Adv
Customize MXUS Rear Cassette Kit, Advanced PAS

* Required Fields

Your Customization

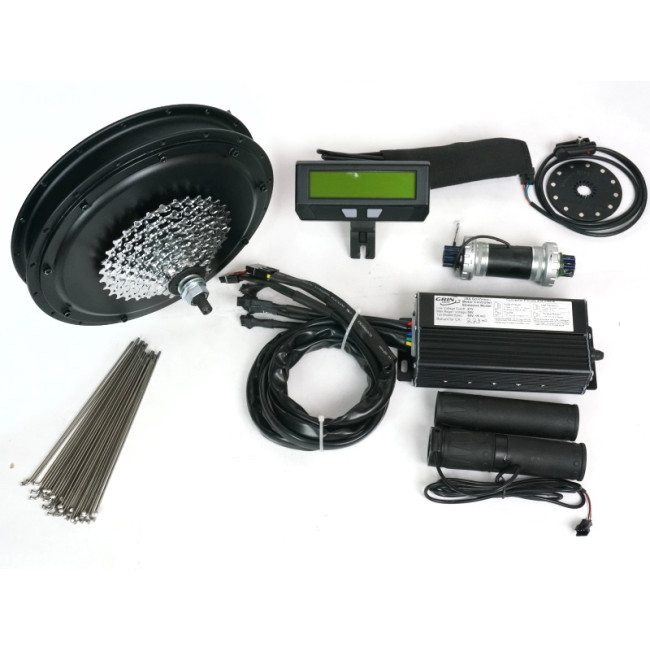

MXUS Rear Cassette Motor Kit with CA3 and PAS Control Options
Summary
    Rear MXUS 30mm motor kit, compatible with cassette freehubs rather than screw-on freewheels. The motor is available in 3 different windings, the fast 3005 option is suitable for small 20" rims, while the 3006 hub is more appropriate for regular 24"-700c wheels. Motors are all stocked unlaced, and feature 0.35mm laminations and are Statorade compatible. For a hand built wheel, please select the rim, spokes, and wheel lacing labour items as well, and expect a 3-4 day additional wheel building delay. You have options of 25-40A regen capable controller, wiring accessories, and PAS or Torque Sensor Options for the V3 Cycle Analyst

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

    7 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    8 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    9 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    10 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    Rim24J31
    Actual Weight (kg)
    0.7000
    Rim Width (mm)
    31
    Spoke Holes
    36 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    477
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Phaserunner_MT
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Regen Voltage (V)
    90
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    Phaserunner_MT_Bk
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    24 Pole PAS (Short 90cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
