IGH_305

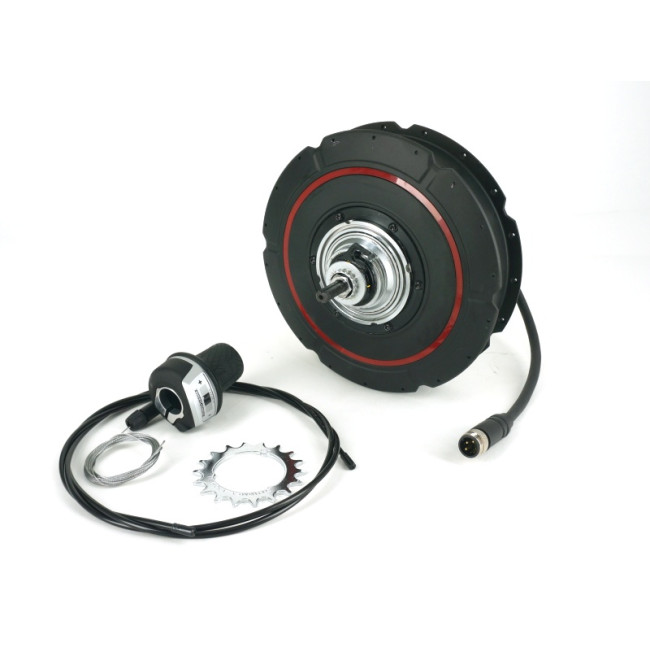

TDCM Direct Drive with Internal Gear Hub - Unlaced. 30mm stator, 305rpm winding, 5 Speed Sturney Archer Pedal Hub with Shifter. 1/8" Chain 18T Sprocket. 4 bolt Rohloff disc mount. New L10 connector.
SKU
M-IGH_305
TDCM Internally Geared Hub - 30mm stator, unlaced, 305rpm winding, new L10 connector. Internal 5Spd Sturmey Archer gear hub, disc brake compatible with 4 bolt Rohloff disc rotors, compatible with Statorade in Hub for maximum thermal performance. Requires 1/8" Chain and is best with slotted horizontal dropouts. Does not work with conventional torque arms and supplied anti-rotation plate can be difficult to engage in vertical dropouts.
| Country of Manufacture | Taiwan |
|---|---|
| Actual Weight (kg) | 6.54 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 8.9 |
| Phase Resistance (Ohm) | 0.233 |
| Disk Brake Compatible | Yes |
| Connector(s) | L1019 |
| Axle Length (O.L.D.) | 135 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 210 |
| Magnetic Pole Pairs (Phaserunner) | 16 |
| Speedo Poles (for CA) | 16 |
| Hysteresis Losses (N-m) | 0.78 |
| Eddie Losses (N-m / rad/sec) | 0.006 |
| Motor Inductance (H) | .0008 |
