Canadian
M2706FD
9C+ Front 2706 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 10.7 rpm/V for regular 20" Builds or Fast 24"-700c Setups. Clearance Sale. May have cosmetic damage or slight scraping sound, but 100% functional"
SKU
M-M2706FD

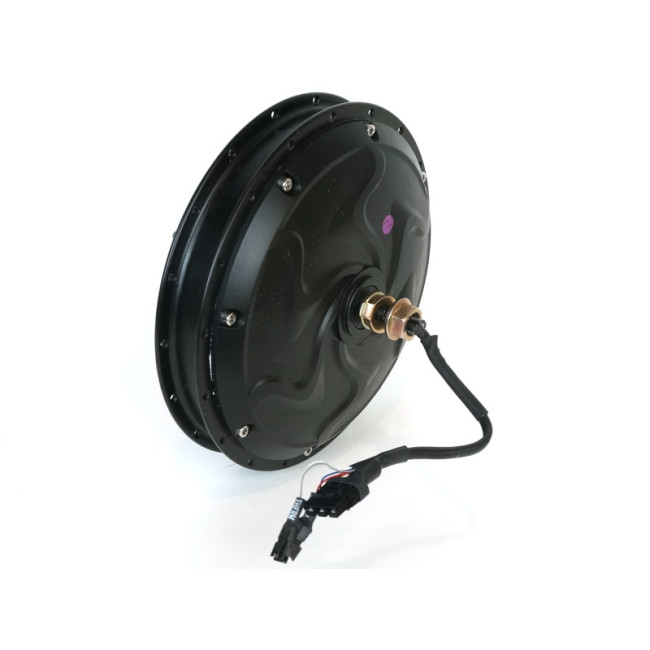

Nine Continent 2706 Front Hub Motor updated with 0.35mm Laminations for reduced rolling drag and higher peak efficiency. Includes 10K NTC thermistor for motor temperature sensing and thermal rollback with V3 Cycle Analyst. The 6 turn motor winding runs at 10.7 rpm/V unloaded, and is great building for fast ebikes in 24"-700c rims, or regular speed ebikes in 20" rims.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.16 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 10.7 |
| Phase Resistance (Ohm) | 0.145 |
| Disk Brake Compatible | Mostly, requires axle spacer washer to 103mm OLD |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 100 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.6 |
| Eddie Losses (N-m / rad/sec) | 0.0022 |
| Motor Inductance (H) | 0.0006 |
