Solar MPPT Boost Converter

300 Watt Boost MPPT for Solar Charging 36-72V Ebike Batteries.
Product discontinued 2020, replaced with The New Adjustable 400W Boost MPPT with LED Display.



SKU
CG-SolarMPPT

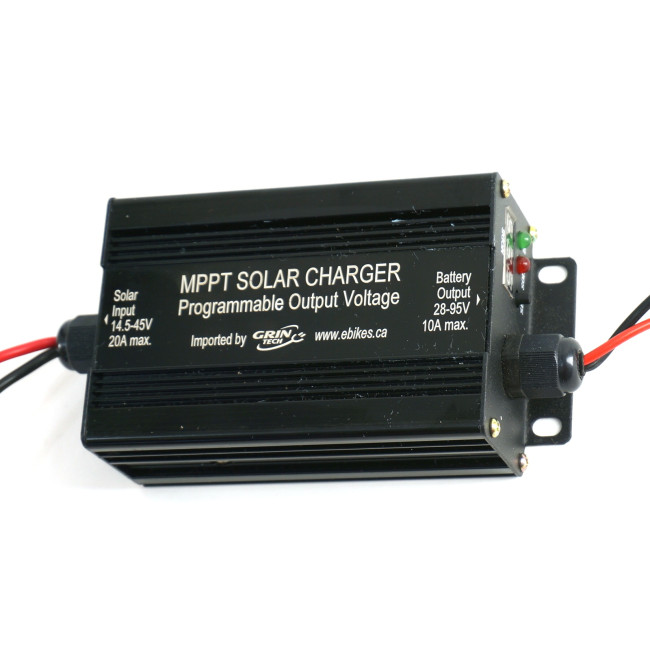

300 watt maximum power point tracker (MPPT) for your special solar panel needs.

28-95V output for higher voltage eBike batteries.

Not waterproof.

Custom voltage, or stock 48V/60V/72V lead acid/LiFe profiles.

Terminated with Anderson Power Pole connectors.

This solar charge controller is a basic unit that can boost the voltage of your solar panels (15-40V typically) to that of your battery pack.

There is an included Chinglish manual provided by the manufacturer, and a single button to program the output voltage for your attached battery.

When using with Li-Ion batteries, it is recommended to set a custom voltage as a charge termination, as the default battery profiles are for Lead Acid / LiFe batteries

More Information
Country of Manufacture China
Actual Weight (kg) .36
Dimensions (L x W x H, mm) 113 x 74 x 42
Connector(s) Anderson
