Motors

Hub Motor Comparison Picture

All of the motors we sell are 3-phase brushless DC devices and most are pre-laced into a bicycle rim. They come with Anderson Powerpole connectors for the 3-phase power lead, and a 5-pin male JST-SM series connector for the hall signals, and are plug-in compatible with any of our controllers.

Most of our direct drive options are from Crystalyte, a long standing favorite in the DIY community that has made a real comeback in the past few years. The Crystalyte hubs are generally disk compatible, have a side axle wire exit, and include a thermal 10K thermistor in the windings for motor temperature sensing with a V3 CA. The small NSM and SAW direct drive motors have narrow 75mm long axles for folding bikes.

The geared motors are from eZee and Bafang. These offer a better torque to weight ratio than direct drive motors, and they freewheel when not in use, but because of this they lack the capability of regenerative braking or reverse. The V2 eZee motors are nicely made hill climbing machines with plenty of output torque, while the small Bafang G1 hubs are suited to the miniminal assist crowd wanting a light weight (<2.7kg) motor option.



Geared

Direct Drive



Bafang G1

eZee

NSM

SAW20

NineCont

H35 Series

The Crown

Weight

2.7 kg

4.0 kg

2.7 kg

3.4 kg

6.3kg

7.5kg

10.5kg

Power

250-500w

500-1000w

200-400w

250-500w

500-1000w

600-1200w

1000-2000w



Items 1 to 30 of 55 total

Page:
  1. 1
  2. 2

Grid  List

Set Descending Direction
  • Custom Hub Motor Wheel Build

    Custom Motor Build

    From: US$286.50

    To: US$887.00
    Have any of our unlaced hub motors built up into a rim size of your choosing.
  • eZee20

    eZee20

    US$550.00

    ETA : August 31, 2017

    eZee V2 (350RPM) Front Hub Motor in 20" Rim with Tube and 1.75" Tire
  • eZee20R

    eZee20R

    US$550.00
    eZee V2 (350RPM) Rear Hub Motor in 20" Rim with Tube and 1.75" Tire

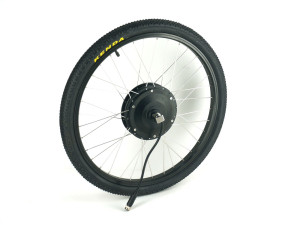

  • 24" eZee Front Hub Wheel, Disk Side

    eZee24

    US$550.00
    eZee V2 (250RPM) Front Hub Motor in 24" Rim with Tube and Schwalbe Tire

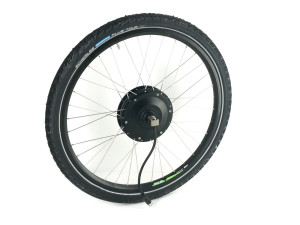

  • eZee26

    eZee26

    US$550.00

    ETA : August 17, 2017

    eZee V2 (250RPM) Front Hub Motor in 26" Rim with Tube and 1.75" Tire
  • eZee26R

    eZee26R

    US$550.00
    eZee V2 (250RPM) Rear Hub Motor in 26" Rim with Tube and 1.75" Tire
  • eZee 650B (27.5") Wheel, Disk Side

    eZee650

    US$550.00
    eZee V2 (250RPM) Front Hub Motor in 650B (27.5") Rim with Tube and Schwalbe Tire
  • eZee 650B Rear Wheel

    eZee650R

    US$550.00
    eZee V2 (250RPM) Rear Hub Motor in 27.5" Rim with Tube and Schwalbe Tire
  • eZee700

    eZee700

    US$550.00
    eZee V2 (250RPM) Front Hub Motor in 700c Rim with Tube and 38c Tire
  • eZee700R

    eZee700R

    US$550.00
    eZee V2 (250RPM) Rear Hub Motor in 700c Rim with Tube and 40c Tire
  • Grin All Axle Hub Build

    Grin All Axle Hub Build

    From: US$733.00

    To: US$866.00
    Custom build of a Grin All Axle Hub Motor.
  • Grin All-Axle Direct Drive Hub Motor, Disk Side

    GrinHub_Fst

    US$595.00
    Grin All-Axle Hub Motor Beta Release. Fast 6 turn (~10.5 rpm/V) Winding
  • Grin All-Axle Direct Drive Hub Motor, Disk Side

    GrinHub_Std

    US$595.00

    Out Of Stock

    Grin All-Axle Hub Motor Beta Release. Standard 8 turn (~8 rpm/V) Winding
  • TDCM Internal Gear Hub with 5 speed Sturney Archer Shifter

    IGH_305

    US$550.00
    TDCM Direct Drive with Internal Gear Hub - Unlaced. 30mm stator, 305rpm winding, 5 Speed Sturney Archer Pedal Hub with Shifter. 1/8" Chain 18T Sprocket. 4 bolt Rohloff disc mount.
  • TDCM Internal Gear Hub with 5 speed Sturney Archer Shifter

    IGH_395

    US$550.00
    TDCM Direct Drive with Internal Gear Hub - Unlaced. 30mm stator, Fast 395rpm winding, 5 Speed Sturney Archer Pedal Hub with Shifter. 1/8" Chain 18T Sprocket. 4-bolt Rohloff disc mount.
  • Front 9C 2705 Hub Motor, 0.35mm Laminations

    M2705FD

    US$175.00
    9C+ Front 2705 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 12.5 rpm/V for 20" Wheels.
  • 9C+ 2705 Rear Hub Motor

    M2705RD

    US$185.00

    Out Of Stock

    9C+ REAR 2705 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 12.5 rpm/V for 20" Wheels.
  • 9C 2706 Front Motor with 0.35mm Laminations

    M2706FD

    US$175.00
    9C+ Front 2706 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 10.7 rpm/V for regular 20" Builds or Fast 24"-700c Setups.
  • 9C+ 2706 Rear Hub Motor

    M2706RD

    US$185.00
    9C+ REAR 2706 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 10.7 rpm/V for regular 20" Builds or Fast 24"-700c Setups.
  • Nine Continent 2707 Front Hub with 0.35mm Laminations

    M2707FD

    US$175.00
    9C+ Front 2707 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 9 rpm/V for Standard 24"-700c Wheels.
  • 9C+ 2707 Rear Hub Motor

    M2707RD

    US$185.00
    9C+ REAR 2707 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 9 rpm/V for Standard 24"-700c Wheels.
  • Crystalyte 3525 Front Hub Motor

    M3525F

    US$350.00

    ETA : July 30, 2017

    Crystalyte H3525 Front Motor, Hub Only, with hall sensors and thermistor
  • M3525R

    M3525R

    US$350.00
    Crystalyte H3525 Rear Motor, Hub Only, with hall sensors and thermistor
  • M3540F

    M3540F

    US$350.00

    Out Of Stock

    Crystalyte H3540 Front Motor, Unlaced, with Hall Sensors and Thermistor
  • M3540F26

    M3540F26

    US$395.00
    Crystalyte H3540 Front Hub Motor in 26" Wheel, with Hall Sensors
  • M3540R

    M3540R

    US$350.00
    Crystalyte H3540 Rear Motor, Unlaced, with Hall Sensors and Thermistor
  • M3540R26

    M3540R26

    US$395.00
    Crystalyte H3540 Rear Hub Motor in 26" Wheel, with Hall Sensors and Thermistor
  • M3540SS

    M3540SS

    US$395.00

    Out Of Stock

    Crystalyte H3540 Hub Motor, Unlaced, with Custom 5/8" Single Side Stub Axle
  • M3548F

    M3548F

    US$350.00
    Crystalyte H3548 Front Motor, Unlaced, with Hall Sensors and Thermistor
  • M3548F20

    M3548F20

    US$395.00

    Out Of Stock

    Crystalyte H3548 Front Hub Motor in 20" Wheel, with Hall Sensors and Thermistor
