Bike Friday 20" Kit

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Bike Friday 20" Kit

Front 20" 250-500W Geared Motor Kit for Bike Friday Haul-a-day, New World Tourist etc.

Out of stock

SKU

K-BF20

Customize Bike Friday 20" Kit

Display Type?

No Display

Quantity

Include Auxiliary Input (for changing presets or limits with CA3)

Quantity

Pedal Sensor for Brompt

Quantity

Throttle Style

Quantity

Charger Option (36V, XLR for eZee)

Quantity

* Required Fields

Your Customization

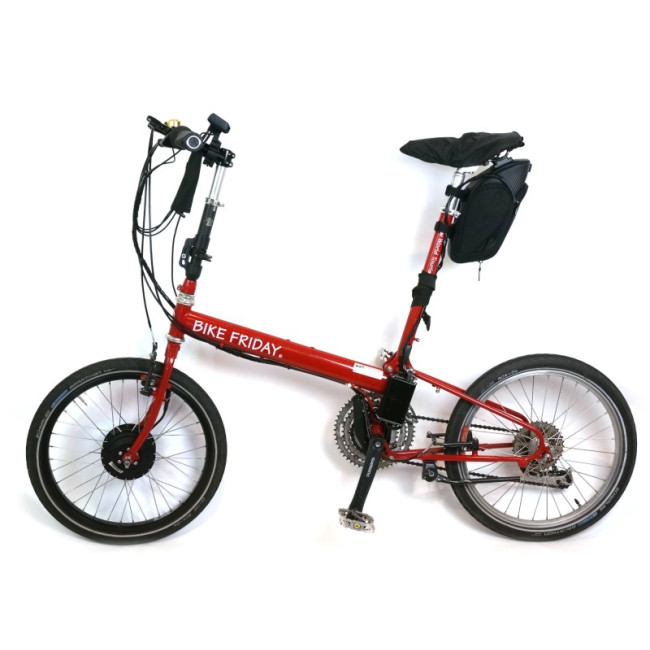

G01 Kit Installed on Bike Friday New World Tourist

Summary

Additional Information

Front 250-500W Geared Conversion Kit. Includes small 2.7kg Bafang G01 or G310 hub with controller bracket, cable lengths, and connectors sized to be a perfect fit on the Bike Friday Haul-a-day, New World Tourist, Pocket Llama, and most other 20" BF bikes. Note that some filing of the front fork dropout slots to a full 10mm may be required. The Rear G310 motor option uses cassette freehub and is suited for bikes with an 8 or 9 speed derailleur system.

24 Pole PAS (Short 90cm Cable)

Country of Manufacture

China

Actual Weight (kg)

.06

Connector(s)

JST-SM

PAS Poles

24

PAS Encoder Type

2 Wire (Quadrature)

Right Half Twist Throttle (50cm Cable)

Country of Manufacture

China

Actual Weight (kg)

.180

3 Pin JST Cable Length (cm)

50

Left Half Twist Throttle (50cm Cable)

Country of Manufacture

China

Actual Weight (kg)

.180

3 Pin JST Cable Length (cm)

50

Twist Throttle - Regular Cable 140cm

Country of Manufacture

Taiwan

Actual Weight (kg)

0.22

3 Pin JST Cable Length (cm)

140

36V 2A Anderson Charger

Country of Manufacture

China

Actual Weight (kg)

0.5

Connector(s)

Anderson

Charger Voltage

36V (42.0V max)

Charge Port Connector

Anderson

Satiator 12-63V, 0-8A with ST3 Adapter

Actual Weight (kg)

1.06

Product Attachments

TDCM Torque Sensing Bottom Bracket, CA3 Compatible. 114mm Spindle

Click Here for detailed product info page - Out of Stock -

TDCM Torque Sensing Bottom Bracket, CA3 Compatible. 120mm Spindle

Click Here for detailed product info page - Out of Stock -

V2.4 Direct Plug-in Cycle Analyst, for Controllers with Direct Drive Hub Motors or Geared Motors with Internal Speedometer. Full Product Information Page

- Out of Stock -

V3 Direct Plug Cycle Analyst, for Controllers with Direct Drive Hub Motors or Geared Motors with Internal Speedometer. Production has been discontinued. Now Replaced with CA3-WP Device Full Product Information Page

- Out of Stock -

3 Level Auxiliary Input Switch for CA3 Device, with Resistors for 1.6, 2.5, and 3.3V. Not for use with CA3's with MFSwitch attachment.

Click Here for detailed product info page

CA3 Compatible Quadrature PAS Sensor, Split 12 Magnet Ring for Square Taper Spindle Mount

Click Here for detailed product info page - Out of Stock -

Left Side Half Grip Twist Throttle, 50cm Cable with 3-pin JST Plug

Click Here for detailed product info page - Out of Stock -

Full Twist Throttle, 140cm Cable with 3-pin JST Connector

Click Here for detailed product info page

Cable Bundling Kit, includes Spiral Wrap, Zip Ties, and Velcro Sleeves

- Out of Stock -

eZee Bike LED Display Console with Custom Firmware for Power Limiting.

- Out of Stock -

No Charger Selected

- Out of Stock -

Upgrade to a Fast 8A Programmable Charger with the Satiator - Includes XLR-ST3 Adapter

Click Here for detailed product info page

No LED Console or Cycle Analyst

CNC'd Aluminum Handlebar Mounted Auxilliary Potentiometer for Infinite On-the-Fly Limit Adjustments of CA3

Click Here for detailed product info page

36V 2.0A Lithium Battery Charger from ST, 100-240VAC

Click Here for detailed product info page

Topeak Mondopack XL Seatpost Bag with Quickclick. Fits up to 6 LiGo Battery Modules

Click Here for detailed product info page - Out of Stock -

36V 2.7Ah LiGo Battery Module, 10A Max. Full Product Information Page NOTE: Due to multi-year lead time on key chips used in the LiGo BMS, the standard LiGo batteries with LG cells are current out of production. Currently only the higher rate LiGo+ batteries remain and are available to purchase.

Click Here for detailed product info page - Out of Stock -

CNC'd Aluminum Controller Bracket Mount for Bike Friday and Other Bicycles with ~34-35mm Tubes

Click Here for detailed product info page - Out of Stock -

36-52V, 20A Sinewave Controller with ON/OFF Switch and Either 90cm or 120cm (for Front hub) Motor Phase Cable using Waterproof Z910 Higo Connector. For use with GEARED hub motors with standard Bafang pinout - not compatible with motors with combined speed and temp signal without modification. New Model with WP8 CA Plug. Full Product Information Page

Click Here for detailed product info page - Out of Stock -

Thumb Lever Throttle, Universal Left/Right Side Design

Click Here for detailed product info page - Out of Stock -

New Extra Slim Split Grin Twist Throttle, 36mm OD Fits Under Lever Shifters. 50cm cable length for CA3. Requires ID of Handlebar Tube 17mm or Larger. Won't Fit with Aluminum Handlebars with Thick Sidewalls.

Click Here for detailed product info page

Sempu Torque Sensing Bottom Bracket, 122.5mm Spindle.
73mm Shell Adapter

Click Here for detailed product info page - Out of Stock -

Sempu Torque Sensing Bottom Bracket, 115mm Spindle.
73mm Shell Adapter

Click Here for detailed product info page

CA3 Compatible Mini PAS Sensor with 24 Poles for Immediate Engagement. For Square Taper Spindles with at Least 5mm of Exposed Spindle. Standard 90cm Cable Length

Click Here for detailed product info page

Slim Up/Down Digital Aux Input for CA 3.1 Devices

Click Here for detailed product info page

New Extra Slim Split Grin Twist Throttle, 36mm OD Fits Under Lever Shifters. 50cm Cable Length for CA3. Requires ID of Handlebar Tube 17mm or Larger. Won't Fit with Aluminum Handlebars with Thick Sidewalls.

Click Here for detailed product info page

Bafang G311 Front Geared Hub Motor in 20" Alex DM18 Rim. Fast Wind (10.5 rpm/V).

Click Here for detailed product info page - Out of Stock -

NCTE Square Taper Torque Sensor (Similar to THUN), Standard Length 120mm Spindle Suitable for Most Bikes.

Click Here for detailed product info page - Out of Stock -
