Phaserunner L10 Motor Harness

Grin Phaserunner_MT to L1019 Motor Cable Harness.

USD$35.00
Availability: In stock
SKU
Msc-PR_Harness_L10

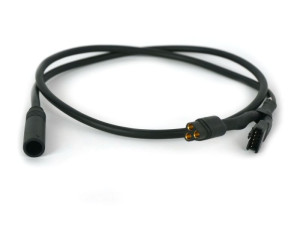

Cable harness for hooking up Phaserunner_MT or Frankerunner_MT motor controllers to a motor with an L1019 connector on it.

Cable Length = 54cm.

Controller Side Pintout
MT60:  Green, Yellow, and Blue Phase aleads
5 Pin Male JST-SM: Motor Hall Signals (1 = Gnd, 2 = yellow, 3 = green, 4 = blue, 5 = 5V)
3 Pin JST-SM: Speed and Temperature (1 =N/C, 2= Temperature Input, 3 = Speedo Input)

Motor Side Pinout
L1019: Our usual standard

This cable is intended for use with V5 and later Frankerunner_MT or Phaserunner_MT devices. It can also be used with an older generation V3 Phaserunner_MT, but the 3 pin speed + temperature plug should be left disconnected as those controllers do not have a matching input.
Do not plug the speed+temp connector of this cable into a the 3 pin throttle plug of those older model motor controllers.

More Information
Country of Manufacture Canada
Actual Weight (kg) .2
Connector(s) JST-SM, L1019, MT60
